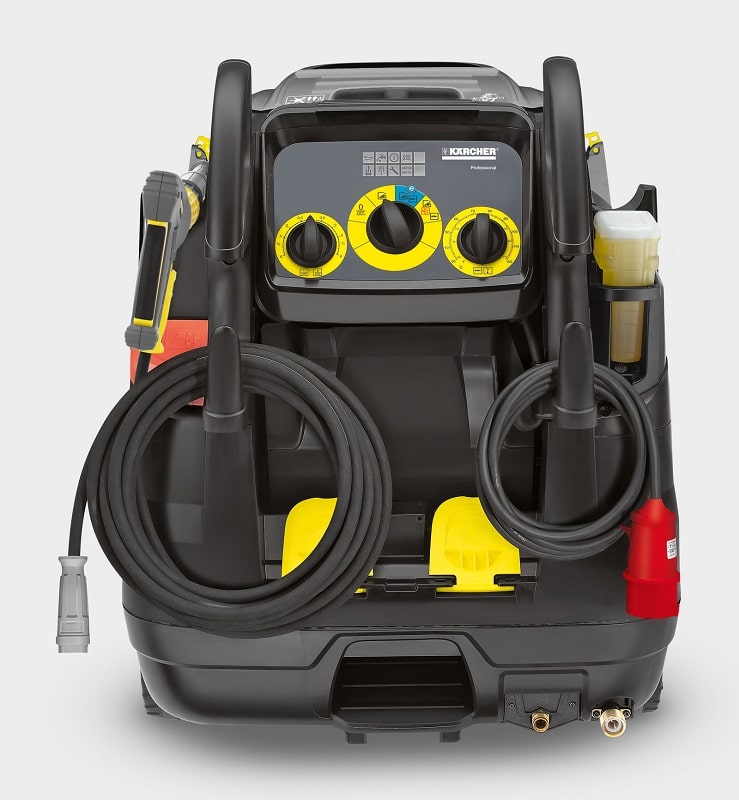

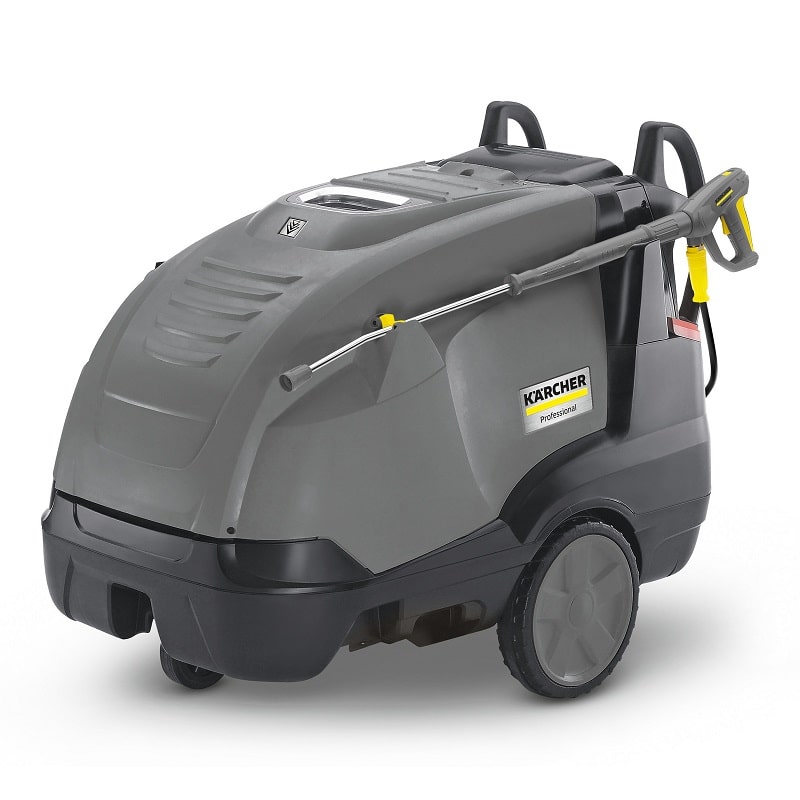

Karcher HDS 7/10-4M Hot Water Pressure Washer
The Karcher HDS 7/10-4M Hot Water Pressure Washer reaches very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand.
The HDS 7/10-4 M features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs.
Efficiency
In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow. The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.
Maximum efficiency
Highly efficient burner technology. 4-pole, slow-running electric motor guarantees a long working time.
Operational safety
The large, integrated fine-mesh water filter reliably protects the high-pressure pump against dirt particles. An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C. The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Got some unanswered questions? Read Our FAQs
Current type (Ph/V/Hz) | 1 / 240 / 50 |
Flow Rate (l/h) | 350 – 700 |
Operating pressure (bar/MPa) | 30 – 100 / 3 – 10 |
Temperature (supply 12°C) (°C) | min. 80 – max. 155 |
Power rating (kW) | 3.4 |
Consumption fuel oil (kg/h) | 4.6 |
Heating oil consumption, eco!efficiency (kg/h) | 3.7 |
Power cable (m) | 5 |
Fuel tank (l) | 25 |
Weight (with accessories) (kg) | 159.3 |
Weight incl. packaging (kg) | 171.3 |
Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
